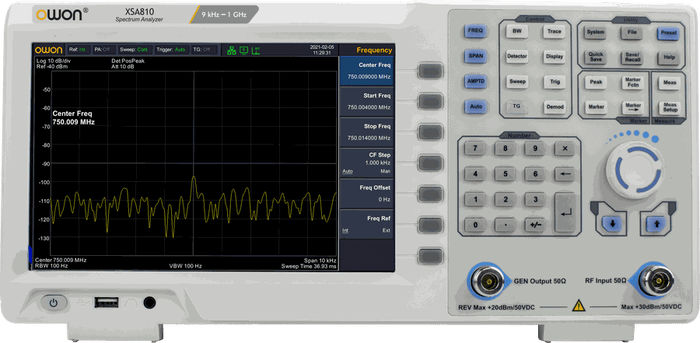

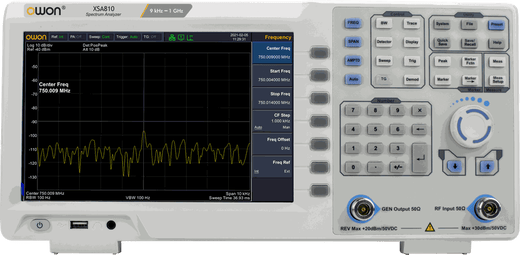

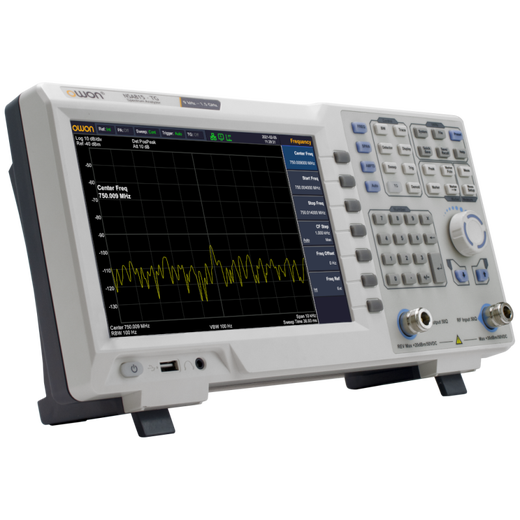

OWON XSA810-TG 9kHz-1GHz spectrum analyzer
NEW
€1,017.00
The OWON XSA810-TG 9kHz-1GHz is a cost effective spectrum analyzer with tracking generator inlcuded and a frequency resolutions of 1Hz.
frequency span

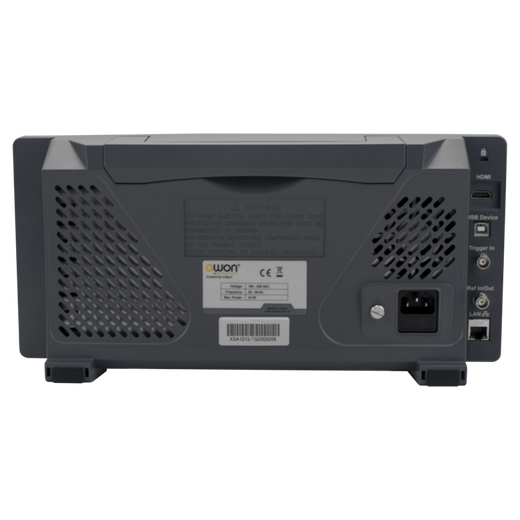

1 Handle 6 10MHz IN/OUT
2 Lock hole 7 LAN interface
3 HDMI interface 8 Stool ( To adjust the angle of the device )
4 USB interface 9 AC power connector
5 External trigger connector
OWON XSA810
- Frequency Range from 9 kHz to 1.000009 GHz
- 9 kHz to 1 MHz -95dBm Displayed Average Noise Level
1 MHz to 500 MHz 140 dBm (Typical), <-130dBm - Phase Noise -10 kHz < -80 dBc/Hz
100 kHz < -100 dBc/Hz
1 MHz < -115 dBc/Hz - Resolution Bandwidth (RBW) ( -3dB )
1 Hz to 1 MHz, in 1-3-5-10 sequence
-
Tracking Generator Kit ( TG model ) 100 kHz to 1.000009 GHz
-
9 inches display
EMC test function ( requires optional software )
Tracking generator with the TG models
| MODEL | XSA810-(TG) |
|---|---|
| Frequency Range | 9 kHz to 1 GHz |
| Frequency Resolution 1 Hz | 1 Hz |
| Frequency Span | 9 kHz to 1.000009 GHz |
| Span Range | 0 Hz, 100 Hz to max frequency of instrument |
| Span Uncertainty | ± span / (sweep points-1) |
| SSB Phase Noise(20°C to 30°C,fc=1 GHz) | |
| Carrier Offset | 10 kHz < -80 dBc/Hz | 100 kHz < -100 dBc/Hz | 1 MHz < -115 dBc/Hz |
| Resolution Bandwidth (-3 dB ) | 1 Hz to 1 MHz, in 1-3-5-10 sequence |
| RBW Accuracy | < 5% typical |
| Resolution Filter Shape Factor (60 dB : 3 dB) | <5 typical |
| Video Bandwidth (-3 dB) | 10 Hz to 1 MHz, in 1-3-5-10 sequence |
| Amplitude measurement range | DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off |
| DANL to +20 dBm,10 MHz to 1.5 GHz, Preamp Off | |
| Reference Level | -80 dBmto+30 dBm,0.01dB by step |
| Preamp | 20 dB, nominal, 100 kHz to 1.5 GHz |
| Input Attenuator | 0 to 40 dB,1 dB by step |
| Display Average Noise Level Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20°C to 30°C, input impedance = 50 Ω) | |
| Preamp Off 9 kHz to 1 MHz | -95 dBm (Typical), <-88 dBm |
| Preamp Off 1 MHz to 500 MHz | -140 dBm (Typical), <-130dBm |
| Preamp On 100 kHz to 1 MHz | -135 dBm (Typical), <-128 dBm |
| Preamp On 1 MHz to 500 MHz | -160 dBm (Typical),<-150 dBm |
| Tracking Generator (optional) | |
| Frequency Range | 100 kHz to 1.000009 GHz |
| Output power level range | -40 dBm to 0 dBm |
| Output level resolution 1 dB | |
| Output flatness | Relative to 50 MHz | ± 3 dB |
| Tracking generator spurious | Harmonic spurious -30 dBc (Tracking generator output power -10 dBm) |
| Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm) | |
| Tracking generator to input terminal isolation | -60 dB (Tracking generator output power 0 dBm) |
The accessories subject to final delivery :
1 x XSA810-(TG)
1 x 220V AC power cord
1 x USB Cable
1 x Quickstart guide
