OWON XSA1015TG 9kHz - 1.5GHz Series Spectrum Analyzer
The OWON XSA1015-TG spectrum analyser has a frequency range up to 1.5GHz and has a tracking generator. The XSA1015-TG has a large 10.4" LCD display and is equipped with advanced measurement functions.
The OWON XSA1015-TG has a noise level of -130 dBm/Hz and -150 dBm/Hz when the built-in pre-amplifier is switched on. The tracking generator is capable of producing an output frequency of 100 kHz to 1.5 Ghz. Furthermore, the power of this signal is adjustable from -30 dBm to 0 dBm.
More accurate low-noise measurements
| Inputs and Outputs | |
|---|---|
| Front panel RF input connector | 50 Ω，N-type female |
| Front panel track generator output | 50 Ω，N-type female |
| 10 M reference input | 50 Ω，N-type female |
| Communication port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA |
XSA1015TG Series Spectrum Analyzer
- Frequency Range from 9 kHz up to 1.5 GHz
- 138dBm Displayed Average Noise Level
- Phase Noise -98dBc/Hz @1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)
- EMI Pre-compliance Test Kit, optional EMC test software
- Standard Pass/Fail on-site test alert ability
- Up to 1.5 GHz Tracking Generator Kit
- 10.4 inches display

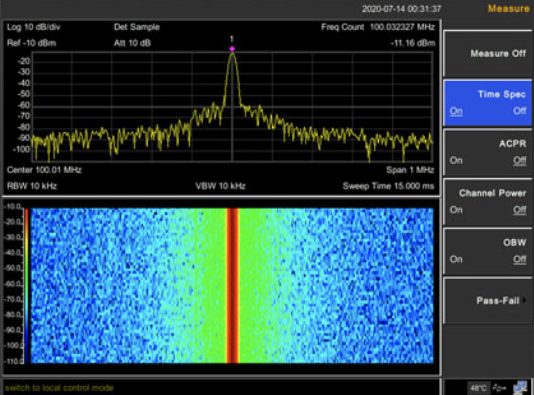

Waterfall plot graphic

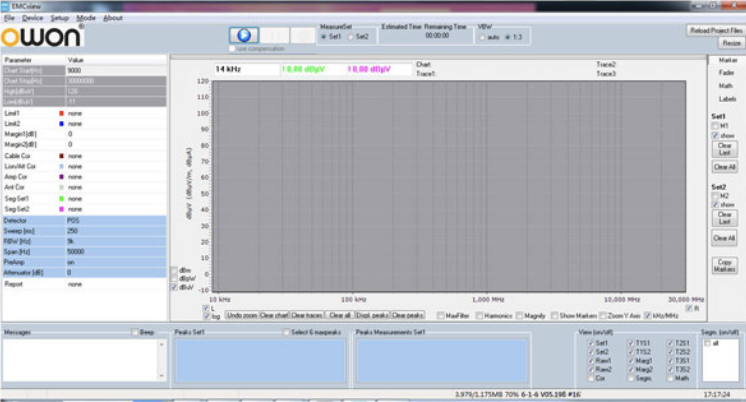

Provide EMC test function ( requires optional software )
With the more then 200 mainstream Built-in EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis
| MODEL | XSA1015-TG |
|---|---|
| Frequency Range | 9kHz-1.5 GHz |
| Resolution | 1Hz |
| Frequency span Range | 0 Hz，100 Hz to maximum frequency of device |
| Accuracy | ± span /（swept points -1） |
| Internal reference Reference frequency | 10.000000 MHz |
| Reference frequency accuracy | ±[（days from last calibrate × freq aging rate）+ temperature stability + initial accuracy ] |
| Temperature stability | <2.5ppm （15℃ to 35℃） |
| Aging rate | <1ppm/year |
| Readout Marker frequency resolution | span/（the number of sweep points -1） |
| Uncertainty | ±（freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution） |
| Frequency counter Resolution | 1 Hz，10 Hz，100 Hz，1 kHz |
| Accuracy | ±（marker freq × freq reference uncertainty + counter resolution） |
| Bandwidth | |
| Resolution bandwidth (-3 dB) | 10Hz to 500kHz（in 1 to 10 sequence）， 1MHz，3MHz |
| Resolution filter shape factor | <5：1 nominal（Digital implement, similar to Gauss Pattern） |
| Accuracy | <5% nominal |
| Video bandwidth (-3 dB) | 10Hz to 3MHz |
Accessories Included :
1 x XSA1015-TG
1 x EU Main power cord
1 x CD ROM
1 x Quick start guide
