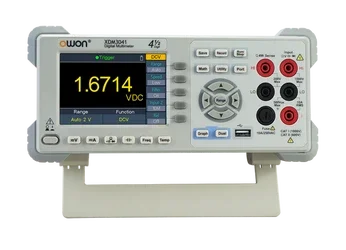

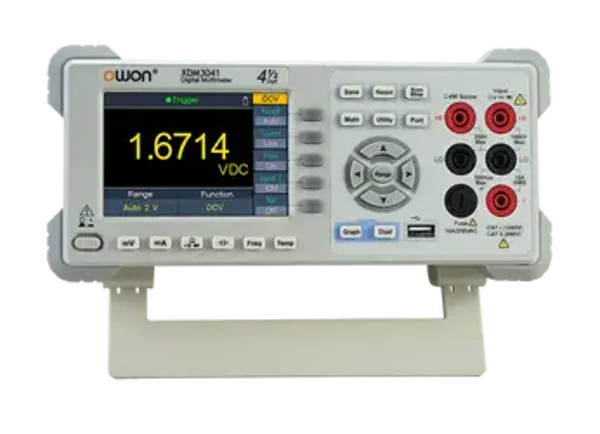

OWON XDM3041 4 1/2 digit Bench-type Digital Multimeter
€325.00
OWON XDM3041 4 1/2 digit Bench-type Digital Multimeter is a economical high precision True RMS multimeter.The OWON XDM3041X can measure AC / DC voltage and current and it has a reading speed of up to 150 values per second.
The OWON XDM3041 offers various functionalities such as histogram and trend plots and display a bar chart. The OWON XDM3041X has a color 4.0 "display and clear and easy to easy buttons for controlling the unit. With the LAN or USB this multimeter can be programmed and checked with a PC. In addition, data can be stored on USB devices.
Dual display
OWON XDM3041X 4 1/2 Digital Multimeter
- 4 inch 480 x 320 pixels high resolution LCD
- resolutions up to 4 1/2 digits
- reading rates up to 150 readings/s
- true RMS AC voltage / current measurement
dual line display supported - the change trend analysis accessible via special chart mode
- SCPI supported - remote control, and data-sharing
possible via LAN, USB, RS232 port, and WiFi*
* WiFi module is optional - multi- IO interface: USB Device / Host, RS232, LAN, and ext.
trigger input
| XDM3041 | Measurement Range | Frequency Range | Accuracy: 1 Year ±(% of reading +% of range) |
|---|---|---|---|
| DC Voltage | 600mV, 6V, 60V, 600V, 1000V | / | 0.02±0.01 |
| True RMS AC Voltage | 600mV, 6V, 60V, 600V, 750V | 20 Hz - 50 Hz | 2 + 0.10 |
| 50 Hz - 20 kHz | 0.2 + 0.06 | ||
| 20 kHz - 50 kHz | 1.0 + 0.05 | ||
| 50 kHz - 100 kHz | 3.0 + 0.08 | ||
| DC Current | 600.00 μA | / | 0.06 + 0.02 |
| 6.0000 mA | 0.06 + 0.02 | ||
| 60.000 mA | 0.1 + 0.05 | ||
| 600.00 mA | 0.2 + 0.02 | ||
| 6.000 A | 0.2 + 0.05 | ||
| 10.0000 A | 0.250 + 0.05 | ||
| True RMS AC Current | 60.000 mA, 600.00 mA, 6.0000 A, 10.000 A | 20 Hz - 45 Hz | 2 + 0.10 |
| 45 Hz - 2 kHz | 0.50 + 0.10 | ||
| 2 kHz - 10 kHz | 2.50 + 0.20 | ||
| Resistance | 600.00 Ω | / | 0.040 + 0.01 |
| 6.0000 kΩ | 0.030 + 0.01 | ||
| 60.000 kΩ | 0.030 + 0.01 | ||
| 600.00 kΩ | 0.040 + 0.01 | ||
| 6.0000 MΩ | 0.120 + 0.03 | ||
| 60.000 MΩ | 0.90 + 0.03 | ||
| 100.00 MΩ | 1.75 + 0.03 | ||
| Diode Test | 3.0000 V | / | 0.5 + 0.01 |
| Continuity | 1000 Ω | / | 0.5 + 0.01 |
| Frequency Period | 600 mV - 750 V | 20 Hz - 2 kHz | 0.01 + 0.003 |
| 2 kHz - 20 kHz | 0.01 + 0.003 | ||
| 20 kHz - 200 kHz | 0.01 + 0.003 | ||
| 200 kHz - 1 MHz | 0.01 + 0.006 | ||
| 60 mA - 10 A | 20 Hz - 2 kHz | 0.01 + 0.003 | |
| 2 kHz - 10 kHz | 0.01 + 0.003 | ||
| Test Current | |||
| Capacitance | 2.000 nF | 200 nA | 3 + 1.0 |
| 20.00 nF | 200 nA | 1 + 0.5 | |
| 200.0 nF | 2 μA | 1 + 0.5 | |
| 2.000 μF | 10 μA | 1 + 0.5 | |
| 200 μF | 100 μA | 1 + 0.5 | |
| 10000 μF | 1 mA | 2 + 0.5 | |
| Temperature | temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) | ||
| Data-logger Function | |||
| Logging Duration | 5ms | ||
| Logging Length | 1M points |
Accessories included:
1 x XDM3041X Digital multimeter

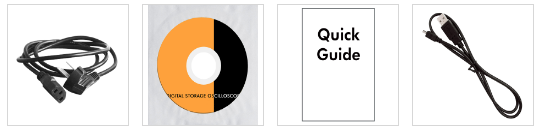

1 x Mains Power cord
1 x CD Rom
1 x Quick start guide
1 x USB Cable

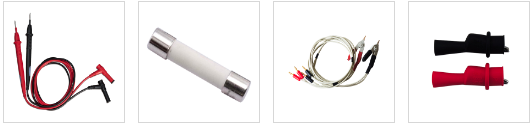

1 x Set probe leads
1 x Fuse
1 x Alligator Clip
Optional Accessories :
1 x Four-wire Type Test Lead (optional)
