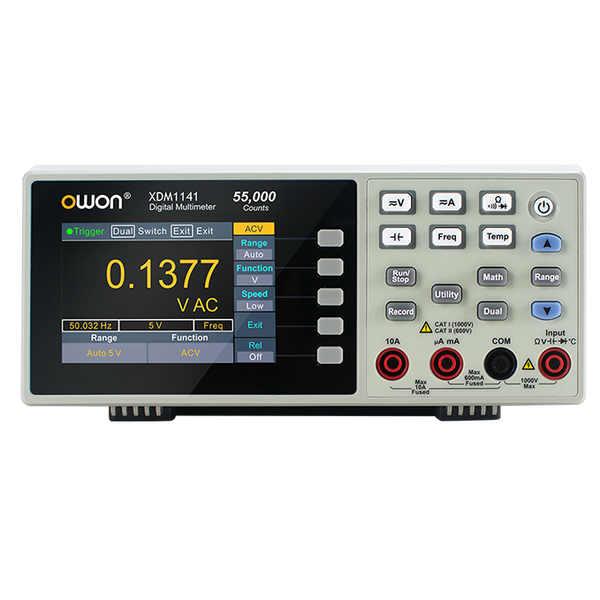

OWON XDM1141 55,000 counts Bench-type Digital Multimeter

NEW

€109.00

Quantity

The new OWON XDM1141 is a low-cost, high-precision True RMS benchtop multimeter. The XDM1041 has a reading speed of up to 65 values per second.

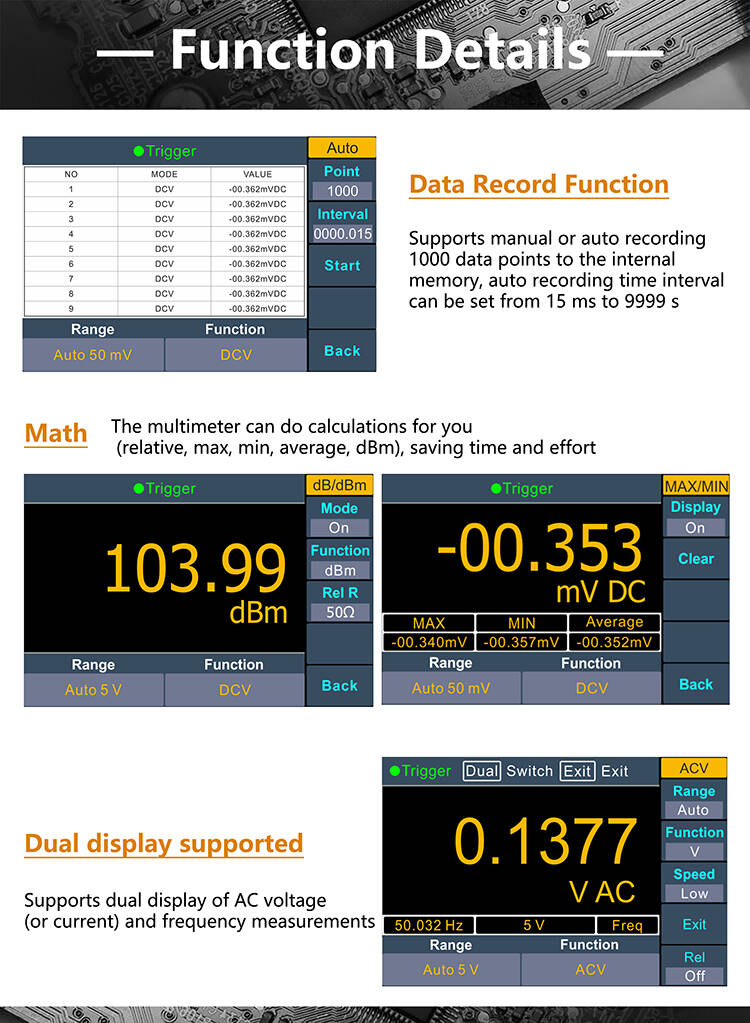

The XDM1141 is able to store data internally in the memory of the meter and display it on the 3.5" high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI.

OWON XDM1041 Range and accuracy	Range	Resolution	Accuracy ±(% of reading +LBS )
DC Voltage	50.000mV	0.001mV	0.1%+10
	500.00mV	0.01mV	0.05%+5
	5.0000V	0.0001V	0.05%+5
	50.000V	0.001V	0.05%+5
	500.00V	0.01V	0.1%+5
	1000.0V	0.1V	0.1%+10
AC Voltage	500mv-750v	20Hz～45Hz	1% + 30
		45Hz～65Hz	0.5% + 30
		65Hz～1KHz	0.7% + 30
DC Current	500uA	0.01uA	0.15%+20
	5000uA	0.1uA	0.15%+10
	50mA	0.001mA	0.15%+20
	500mA	0.01mA	0.15%+10
	5A	0.0001A	0.5%+10
	10A	0.001A	0.5%+10
AC Current	AC Current	20Hz-1KHz	0.5%+20
	5A-10A	20Hz-1KHz	1.5%+20
Resistance	500Ω	0.01Ω	0.15%+10
	5KΩ	0.0001KΩ	0.15%+5
	50KΩ	0.001KΩ	0.15%+5
	500KΩ	0.01KΩ	0.15%+5
	5MΩ	0.0001MΩ	0.3%+5
	50MΩ	0.001MΩ	1%+10
Frequency	10.000Hz–60MHz		±(0.2%+10)
Capacitance	50nF-500uF		2.5%+10
	5mF-50mF		5%+10
Diode	3.0000 V	0.0001V
Continuity	1000 Ω	0.1Ω	Adjustable threshold
Temperature	K type，PT100
Max Display	55,000 counts
Data-logging Function
Logging Duration	15ms-9999.999s
Logging Length	1,000 points
General
Display Screen	3.5- inch TFT LCD with resolution 480*320
Dimensions (W×H×D)	200 x 88x 150 (mm)
Device Weight	Approximately 0.5kg

Accessories included:

1 x XDM1141X Digital multimeter
1 x Mains Power cord
1 x Quick start guide

1 x USB Cable
1 x Set probe leads
1 x Fuse
1 x Alligator Clip ( optional )
